TPV Jagdkanzel mobil Anhänger ungebremst

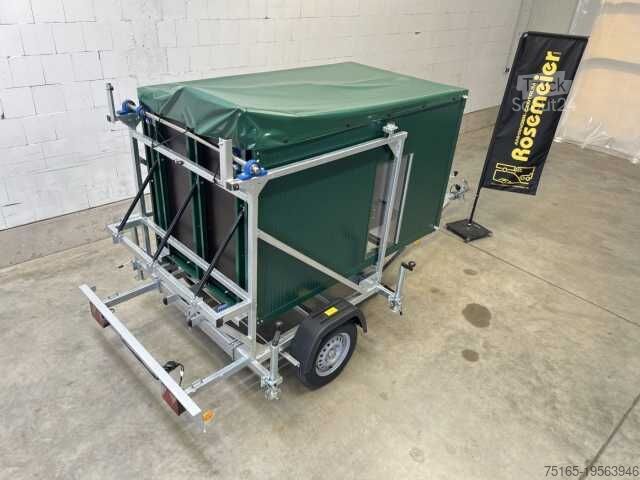

9934231 Mobile hunting stand trailer – The stand can be set up and dismantled in just 3-5 minutes without external help or additional tools, thanks to three gas struts. Ideal for scouting new hunting grounds, driven hunts, guest hunts, and duck hunting. Its low dead weight allows manual positioning on site. With four screw-jack supports, the trailer can be easily leveled, even on slopes.

The stand frame is made of hot-dip galvanized steel, and the walls consist of 30 mm thick, thermally insulated wall panels (green on the outside, white inside). Access is via a ladder, secured to the stand. The door features solid handles and opens inward.

Inside, there is a large front window and two additional side windows (left and right). The shooting height is 3.10 m.
Bodpowzbqmofx Aa Aelp

Trailer:
• Manufacturer: TPV
• Model: Hunting stand trailer
• Design: Unbraked
• Gross weight: 750 kg
• Payload without accessories: approx. 270 kg
• Overall dimensions folded: 4,421 x 1,990 x 2,176 mm (LxWxH)
• Overall dimensions upright: 4,421 x 1,990 x 4,092 mm (LxWxH)
• Max. bearing load: 50 kg
• Coupling height: 450 mm
• Hot-dip galvanized welded V-drawbar
• Knott rubber spring axle with independent suspension, water-protected wheel hubs
• Jockey wheel
• 4 height-adjustable crank supports
• 13-inch tires
• Plastic mudguards
• 13-pin plug

Stand specifications:
• Internal dimensions: 1,180 x 1,180 x 2,020 mm (LxWxH)
• Frame made of hot-dip galvanized steel
• Walls: 30 mm polyurethane insulated panels
• Floor: 15 mm multi-layered, waterproof plywood with anti-slip phenolic resin coating
• Door right-side hinged: Door opening 500 x 1,990 mm (WxH)
• 3 tilt-up Plexiglas windows – Front: 1,053 x 400 mm (WxH), Side (L/R): 738 x 400 mm (WxH)
• Window height from floor: 1,021 mm
• 3-sided shooting rail, 130 mm wide
• Shooting height: 3,100 mm
• Movable bench seat, 350 mm wide
• Ladder length: 2,250 mm
• Vehicle registration papers included

Available options and accessories:
• Spare wheel with holder
• Anti-theft device
• Registration of your new trailer at the motor vehicle department

We are happy to show you convenient monthly financing options and can provide a tailored financing offer. Over 2,000 trailers always in stock. You can find a wide selection on our website.

Or visit us in Horn-Bad Meinberg – we look forward to seeing you! Illustrations may show accessories not included in the standard delivery. Due to continuous improvements, images and technical data may vary slightly. Errors and changes excepted.
