MAN TGM 18.320 4x4 BB KRANKIPPER FASSI F195A.2.24

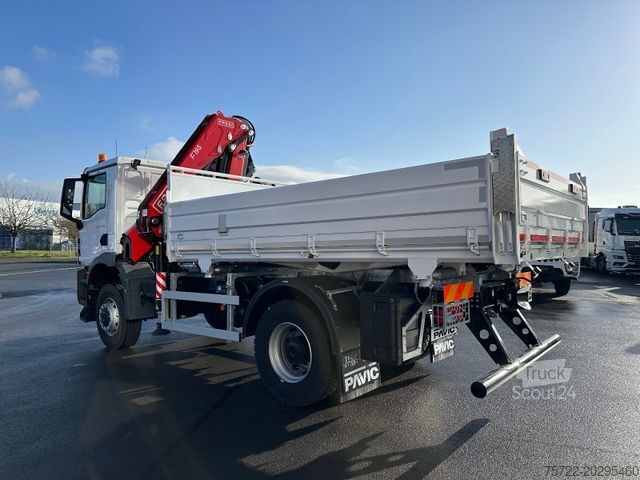

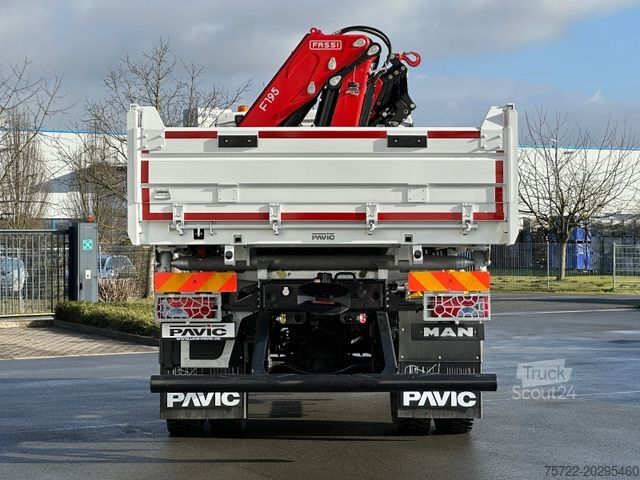

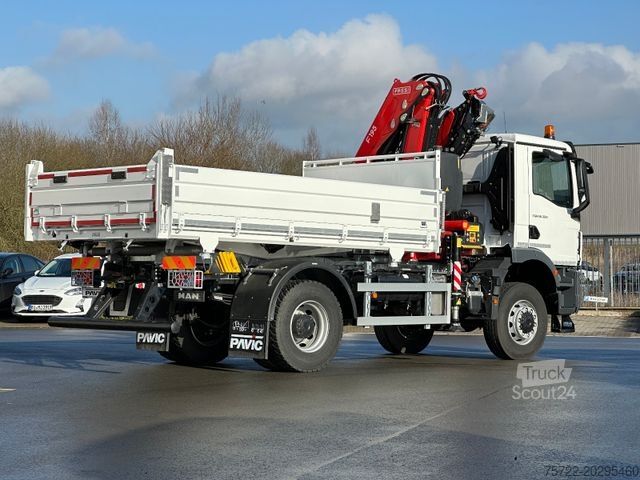

MAN TGM 18.320 4x4 BB WITH PAVIC 3-way Tipper Body AND FASSI F195A.2.24 Crane

A vehicle suitable for landscaping, civil engineering, road construction, site traffic, or as a municipal vehicle!

Vehicle specifications:

* MAN TGM 18.320 4X4 BB loader crane tipper
* Cab type CC: the compact (narrow, short, standard height)
* Wheelbase: 3,900 mm
* Leaf spring suspension, front and rear
* Drive: 4x4 all-wheel drive
* Front axle tyres: 2x 295/80R22.5; Rear axle: 4x 295/80R22.5
* Gross vehicle weight: 18,000 kg
* Automatic transmission: MAN PowerMatic 08 13 OD
* MAN D0836 LFLAP diesel engine, 235 kW (320 hp), 1,250 Nm torque, Euro 6d
* Transmission functions: EfficientRoll + MAN Idle Speed Driving
* Cruise control
* Rear axle differential lock
* Axial hydraulic pump
* Tipper controls in driver’s cab
* MAN EasyControl panel, 4 functions, accessible from outside with door open
* Trailer coupling: RINGFEDER type 4040/G150B
* Two-line brake connection at frame end
* Sun visor in front of windscreen
Gkedpoxnn Hfsfx Ahysc
* Central locking with remote control
* MAN Mediasystem Navigation Advanced 7 inch
* Online traffic for navigation
* Smartphone integration
* Heated and electrically adjustable main and wide-angle mirrors

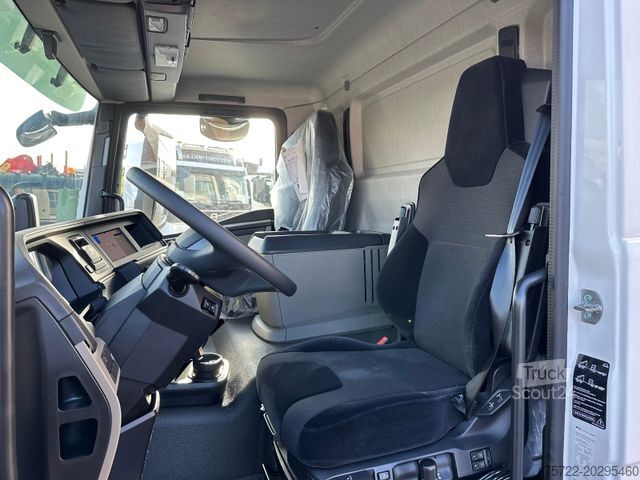

* Air-sprung driver comfort seat with lumbar support, shoulder adjustment, and heating
* Height-adjustable driver’s seat belt
* 2 work lights on cab roof
* 2 halogen beacon lights on cab roof
* And much more

Body:

* PAVIC 3-way tipper body, 4200x2420 mm
* Headboard height: 800 mm
* Sideboard height: 600 mm
* 8 flush, retractable lashing rings in the deck floor (4 per side)
* Material: Hardox 450
* Support edge for horizontal positioning of sideboards with rubber cushion (for long goods transport)
* Spring-assisted sideboard lift for easy opening/closing
* 2 lashing eyes on the headboard (e.g. for securing a compactor or grab)
* Tipper body hot-dip galvanised, sideboards and accessories fully painted with 2K commercial vehicle paint, RAL9016
* Subframe galvanised and painted in RAL 9011
* Left and right sideboards in one piece, can be opened pneumatically from the cab (air valve), can be opened on all sides from below (swinging), from top to bottom manually; centre stanchions removable.
* Spring-assisted sideboard lift for easier opening/closing

* Additional body equipment: pre-prepared mounting points in columns for retrofitting leaf mesh inserts (sideboard extensions PLUS 500 mm, e.g. for transport of trimmings)

Loader crane:

Fassi F195A.2.24 (Hydraulic 4-section extension) FASSI F195A.2.24 e-dynamic
* Lifting moment: 162 kNm (16.51 mt)
* Hydraulic 4-fold extension: 12.7 m
* E-dynamic hose equipment for 2 auxiliary devices
* Slew angle: 400°
* Dual linkage system with PROLINK (over-bending jib articulation up to 15°)
* Electronic overload protection with FX 500
* FASSI stability control FSC incl. LMB II
* Fassi RCS remote control maxi – 6 functions with 3 joysticks (2-2-2)
* Special outriggers, 6.64 m hydraulic extension incl. FSC
* Outriggers operable by remote control
* FL-System (Full Lift) engageable fast extension valve
* LED work lights
