KEMPF SKM 36/3 SHL-Light 3-Achs Stahl Kipper 51m³

KEMPF SKM 36/3 SHL-Light – 3-Axle Steel Tipper, New Vehicle

Expected Delivery Date: February 2026

--- General Information
Type: SKM 36/3 SHL-Light

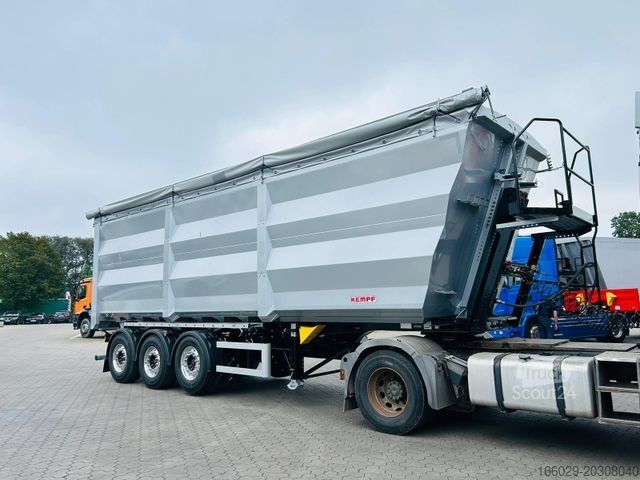

• Design: 3-axle semi-trailer tipper with conical steel trough
• Permissible gross weight: 36,000 kg
• Axle load: 3 x 8,000 kg
• Kingpin load: approx. 12,000 kg
• Nominal fifth wheel height: 1,200 mm (technical 1,200–1,260 mm)
• Loading length: approx. 9,000 mm
• Loading width: front 2,280 mm / rear 2,330 mm
• Trough height: approx. 2,400 mm
Hodexn Eckjpfx Ahysfn
• Trough volume: approx. 51.1 m³
• Overall height: approx. 3,805 mm to loading edge (loaded)

--- Chassis
KEMPF welded construction from high-tensile steel, sandblasted
• Conical-offset version (offset approx. 80 mm)
• All add-on parts hot-dip galvanized
• Chassis colour: Jet Black (RAL 9005)
• Trough colour: White Aluminium (RAL 9006)
• Tarp colour: Silver (Mehler 911)
• Side contour marking (white) and rear (red) per EU directive

--- Axles, Tyres & Suspension
SAF INTRADISC plus Integral (Offroad version)
• Disc brakes Ø 430 mm
• Chassis laser aligned (optimized tire wear & consumption)
• Lifting axle (fully automatic, forced lowering when empty)
• Air suspension with small 300 mm bellows and lifting/lowering device
• Rapid venting available
• Load gauge with tonne scale, front left
• Tires: 385/65 R 22.5
• Rims: Alcoa Ultra ONE aluminum rims, Dura-Bright EVO, 11.75 x 22.5, ET 120

--- Braking System & Safety

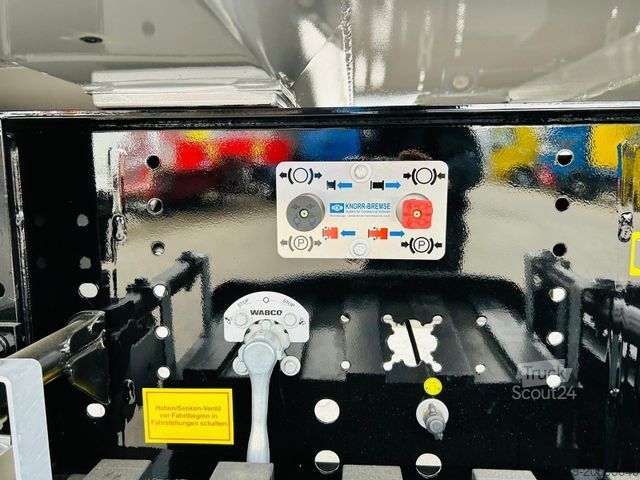

Electronic braking system (Knorr EBS) with RSP (Roll Stability Program)
• ABS 4S/2M with stop light function
• Tire pressure monitoring to ECE R141 (TPMS)

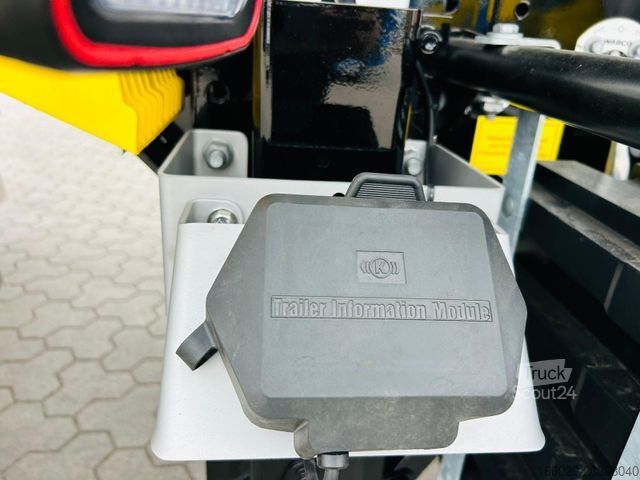

• Trailer Info Module TIM G2 with brake wear indicator
• Acoustic reversing alarm
• Folding underrun protection (ECE R58.03) with spring-assisted lift
• Removable tow coupling (right side)
• Reflector panel (200 x 1,130 mm)

--- Hydraulics
Front tipping cylinder Hyva (single-circuit hydraulic system, 190 bar)
• Hard-chromed piston
• Hydraulic connection: Edbro 1" screw coupling
• Tractor pressure adjustable if required

--- Trough / Body

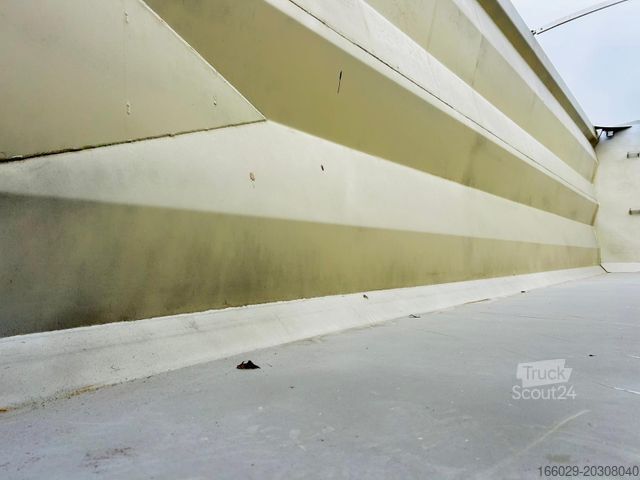

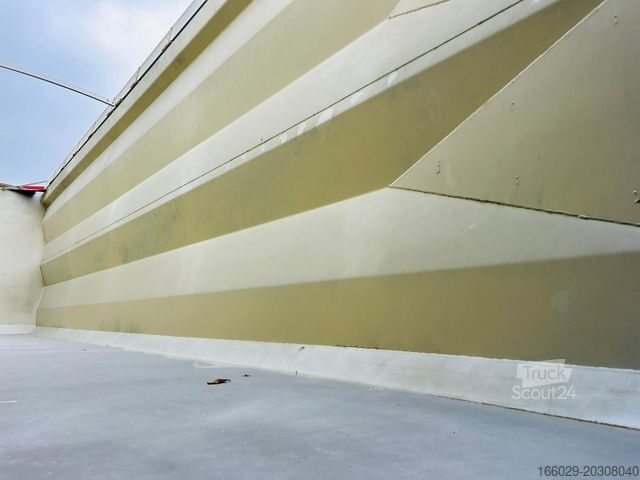

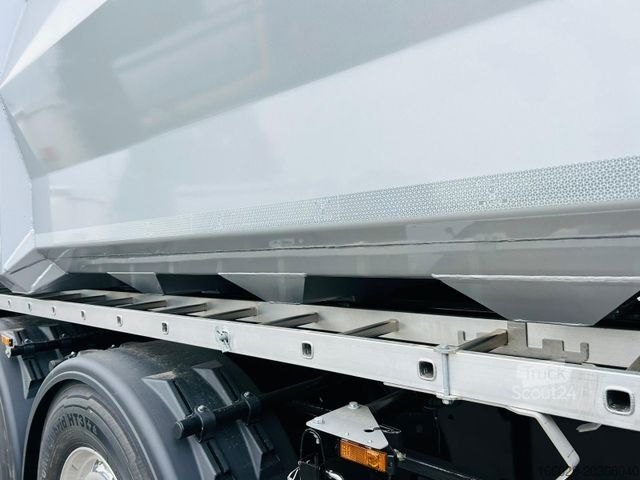

Conical steel trough (widening towards rear)
• Material: HARDOX steel (HB 450 / HB 500)
• Floor: 5 mm HARDOX steel, continuous
• Side walls: lower 4 mm / upper 3 mm HARDOX with reinforcement edges
• Front wall: 20° incline, 3.2 mm HARDOX steel

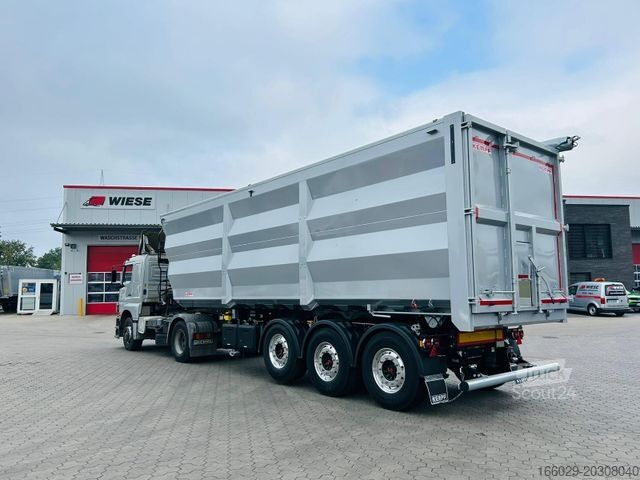

• Rear wall:
• 2-leaf (1/3 left, 2/3 right)
• Non-swinging, manual hook lock
• Grain-tight with rubber seal
• Slider 400 x 400 mm, manual lever control
• Rear wall about 40 mm lower (tarp can remain open)
• Air vibrator, switch operated rear left

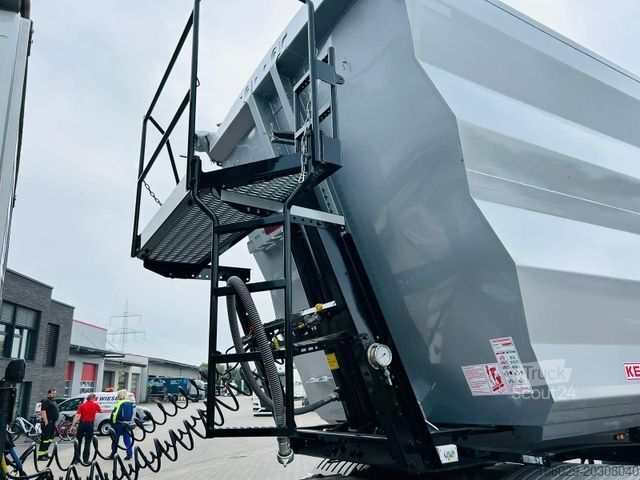

• Catwalk with guardrail per UVV, ladder on left, 2-step access
• Internal access via foot steps on front wall
• Shovel and broom holder on front wall

--- Tarp & Bow System
Rolling tarp made from high-quality PVC (680 g/m²), colour silver
• 3 arched bows (1x fixed steel, 2x telescopic aluminium)
• Crank operation right side, central locking left side
• Aluminium canopy guard, pivoting and closed
• Accessories: stainless steel hooks/pull rod

--- Lights & Electrification
Complete LED fittings per EU/ADR standards
• LED three-chamber lights with chrome rings
• LED rear fog lamp, LED license plate lighting
• LED side marker lights with indicator function
• Brake light (LED)
• 2 additional LED reversing lights (side mounted)
• Internal trough lighting (LED, switch on left frame with control lamp)
• Socket: 15-pin

--- Accessories
Two PVC toolboxes (each 660 x 500 x 4…
