Χαμηλός φορτωτής

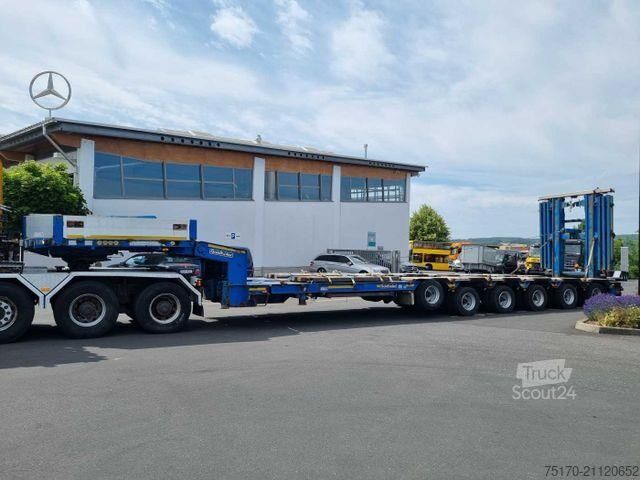

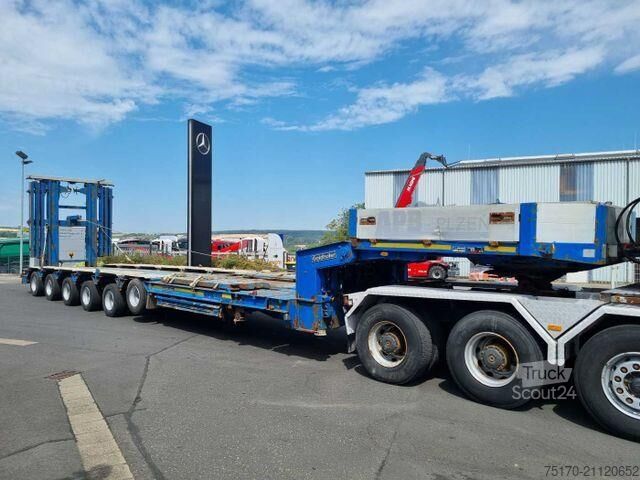

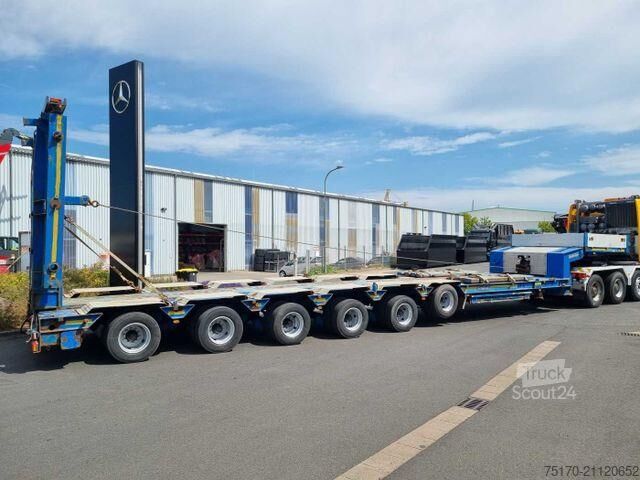

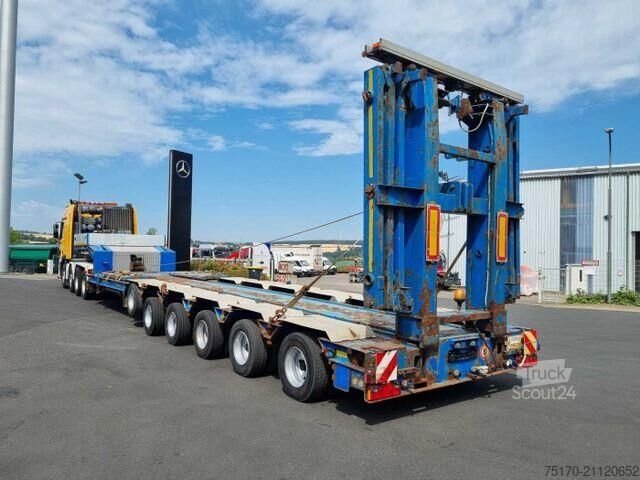

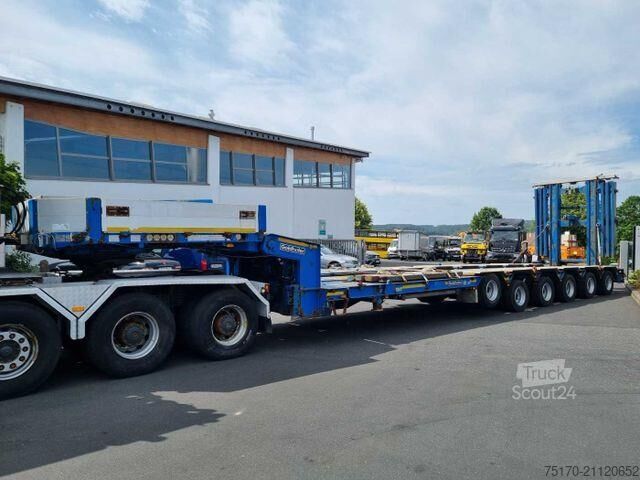

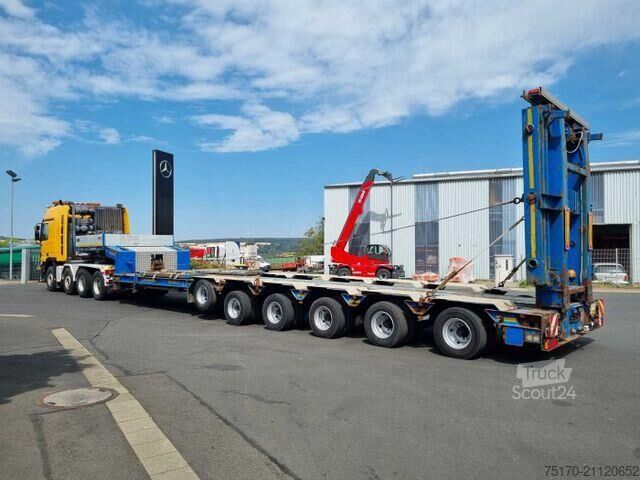

Goldhofer STZ-H6-57/80A Teleskop-Tieflader Waggontransport

Κατάσταση: μεταχειρισμένο, Έτος κατασκευής: 2006, Εξοπλισμός: ABS, Goldhofer STZ-H6-57/80A telescopic low loader for wagon transport Approval Technical 1 Speed: 80 km/h 65 km/h Fifth wheel load: 23,000 kg 26,000 kg Rear axle load: 10,000 kg 11,000 kg Gross weight: 83,000 kg 92,000 kg Payload: 52,500 kg 61,500 kg Unladen weight (without accessories): 30,500 kg Gooseneck: Length: 4,000 mm Width: 2,480 mm Build height: 235 mm Fifth wheel height: 1,350 mm Front overhang: 1,420 mm Rear overhang: 2,700 mm King pin: 3.5 inch Ramp angle: tapered 10 degrees Front corners: tapered 45 degrees Flooring: Spruce 50 mm Support legs: mechanical Width with side walls: 2,550 mm Hydraulic STZ gooseneck with external beams, hydraulically height-adjustable, with mechanical drop-leg supports and hydraulic stabilizer cylinders. Hydromechanical forced steering (dual-circuit steering) in low-profile design (build height 235 mm) with adjustable guide elements and THP steering cylinders. Load platform: Type: platform Hydraulically liftable: no Length: 13,000 mm Width: 3,000 mm Floor: steel/spruce 50 mm Wheel recesses: no Widening options: no Extendable: single-stage telescoping Length 1: 10,000 mm Loading heights (laden) Loading height 1: 815 mm Load platform is telescopic, manufactured as an outer and inner tube construction, with a 1,070 mm long, fixed front platform section. Integrated within the fixed platform section is a bolt-lug coupling for attachment of boiler bridge extension beams; the welded-in Vkt. rails serve as rail tracks for track gauges of 1,000 mm (rail distance 1,015 mm) and 1,435 mm (rail distance 1,450 mm). Pedoyfvypopfx Af Uegg Locking of the extension stages by spring-loaded storage cylinders and cone bushes. Platform height on the center main tube (outer tube) approx. 815 mm (+/- 130 mm) Platform height on the embedded rail elements approx. 790 mm (+/- 130 mm) Rear bogie: Design: standard Loaded height: 815 mm Width: 3,000 mm Wheelbase: 1,360 mm Floor: steel plate Widening options: no Wheel recesses: no Excavator recess: no Axles: Number of axles: 6 Lift axle: see accessories Axle design: cranked stub axles Axle compensation: hydraulic Axle make: BPW/Eco Ride positions: 1 Axle travel (1) +/-: 130/130 mm Axle travel (2) +/-: 0/0 mm Lifting/lowering valve: yes 1st axle pneumatically liftable with lift air bellows Steering: Number of steered axles: 6 Steered axle layout: all steered Max. steering angle: 45° Steering type: hydraulic, 2-circuit Tires: Size: 235/75 R 17.5 143/141 J Tire type: twin Rim type: disc Rim centering: hub-centered Brakes: EU standard: yes AGS: yes ALB: yes ABS: yes with ABS delete: no Parking brake: spring actuated EBS: no ECAS: no Comment: brake calculation no. GH 4324S Chassis note: Steering designed for extended state with increased steering lock on front axles Open wheel cutouts over wheels with narrow cross members in between (ALU covers, see accessories) Control elements protected on left side in direction of travel...
